AUTOMATIC HANGER MODEL SHOT BLASTING MACHINE M1250 X-A

  • MAXIMUM HOOKS’ LOAD 750 KG.
  • AUTOMATIC LATERAL OPENING DOOR

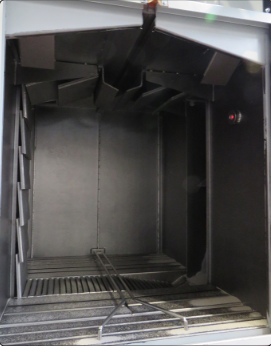

  • BLASTING CHAMBER MADE BY MANGANESE STEEL
  • AUTOMATIC CONTROLS INDUSTRY 4.0
  • AUTO CLEANING DYNAMIC FILTERING DEVICE
  • HIGH DUSTS’ SEPARATION

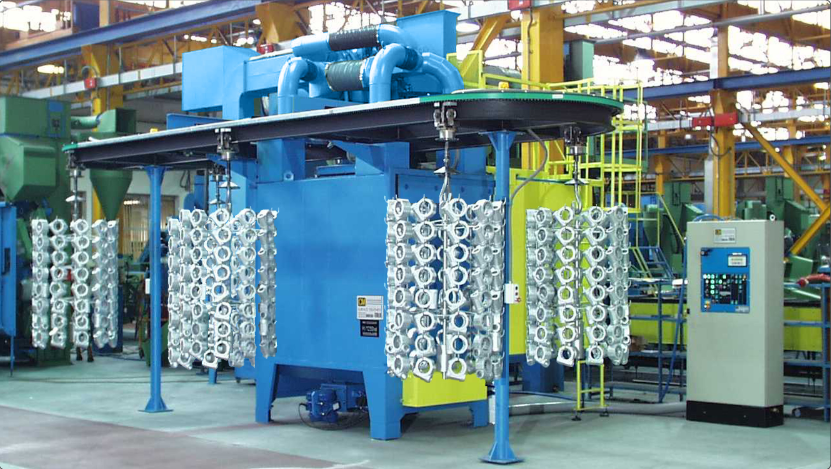

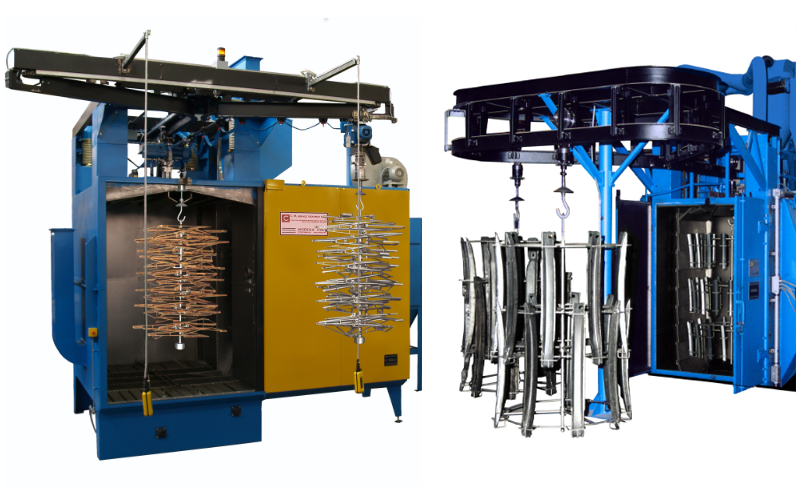

The M1250xA shot blasting machine is fully automatic and the operator need only to supervise activities.

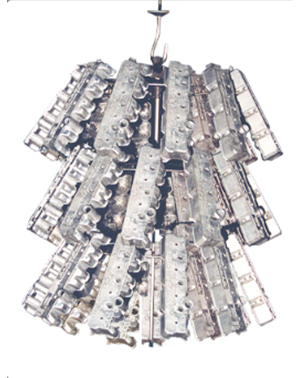

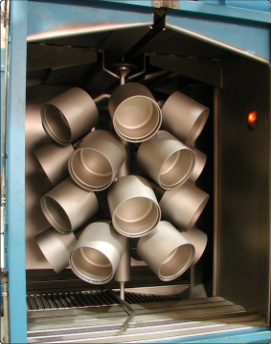

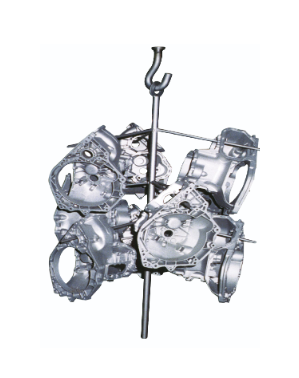

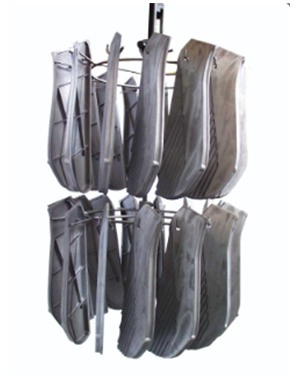

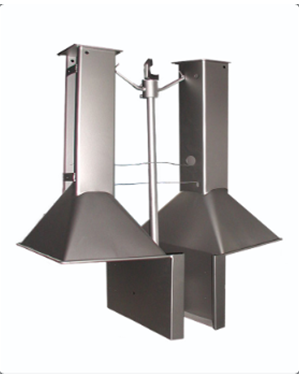

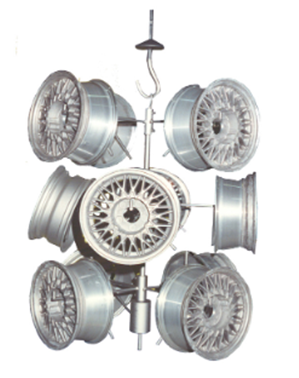

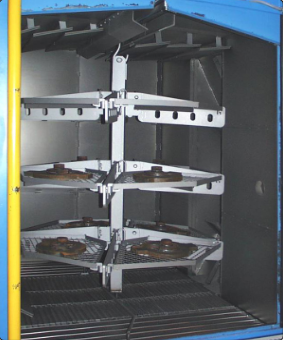

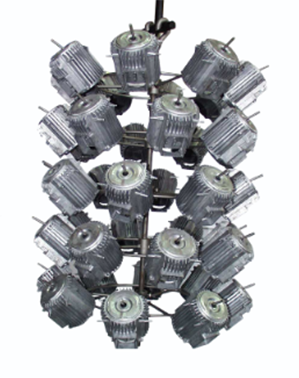

The machine is incredibly functional and suitable to treat both medium - large parts (hung individually on hooks) or fittings where pieces’ clusters are placed (many pieces of different sizes or weights).

Loading and unloading activities can be carried out by one person or by an automatic robot; lifting of heavy parts is performed by optional lifting platforms.

WORKING CHARACTERISTICS

HOOKS WHEELS HOOK OPERATING SIZE (mm) HOOK MAX LOAD
D D1 H (kg)
2 2 1250 1000 1250 700

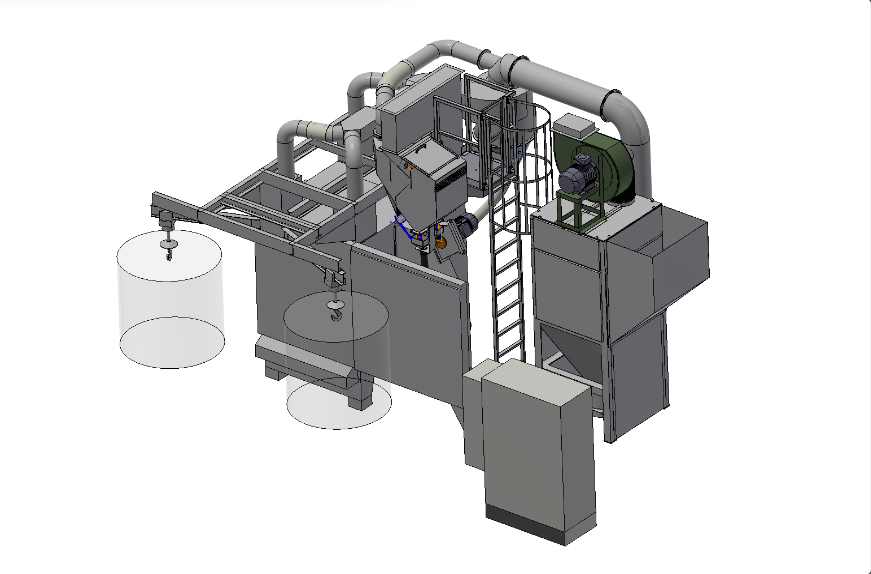

OVERALL DIMENSIONS

L (mm) P (mm) H (mm)
6550 4590 4100
